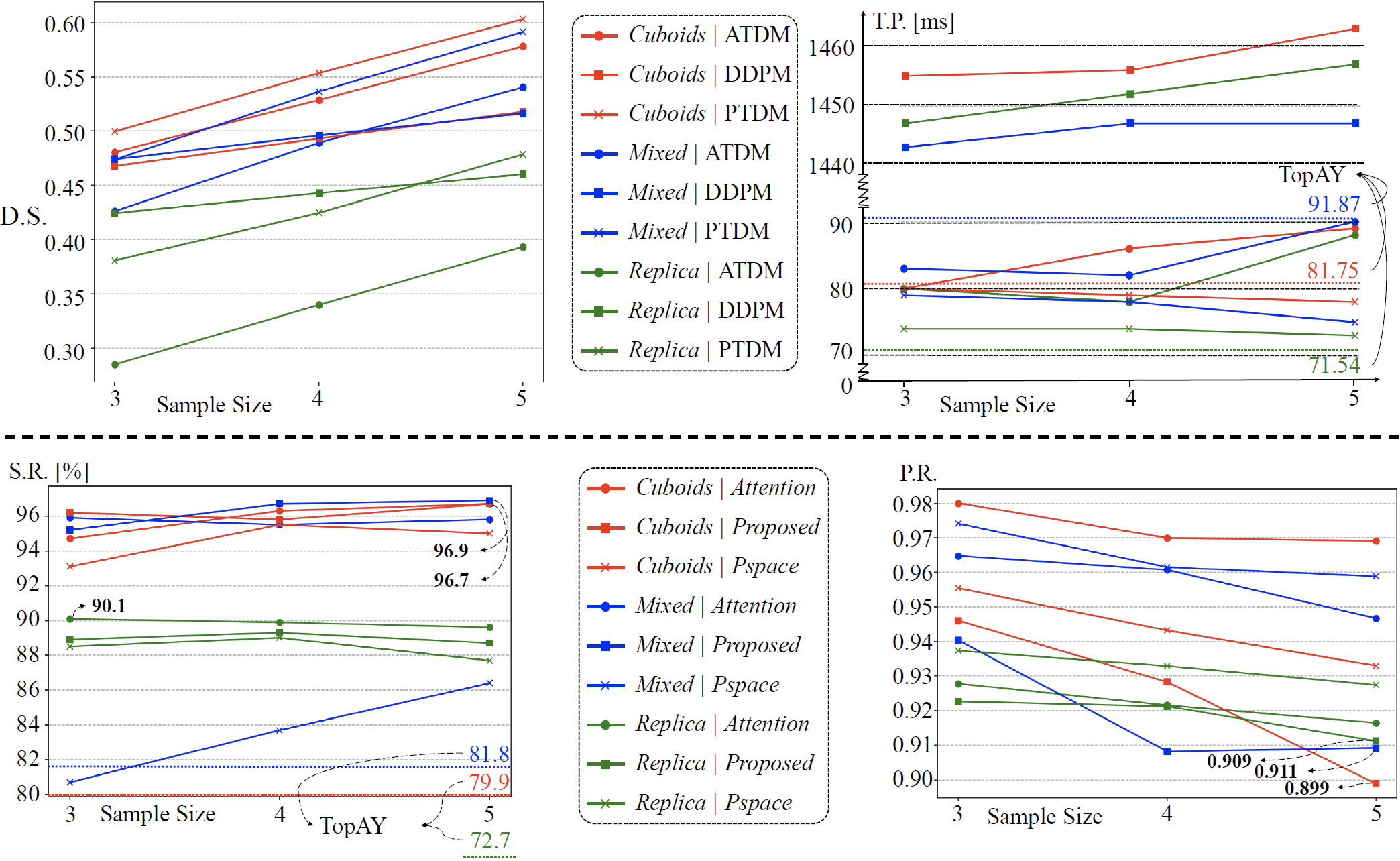

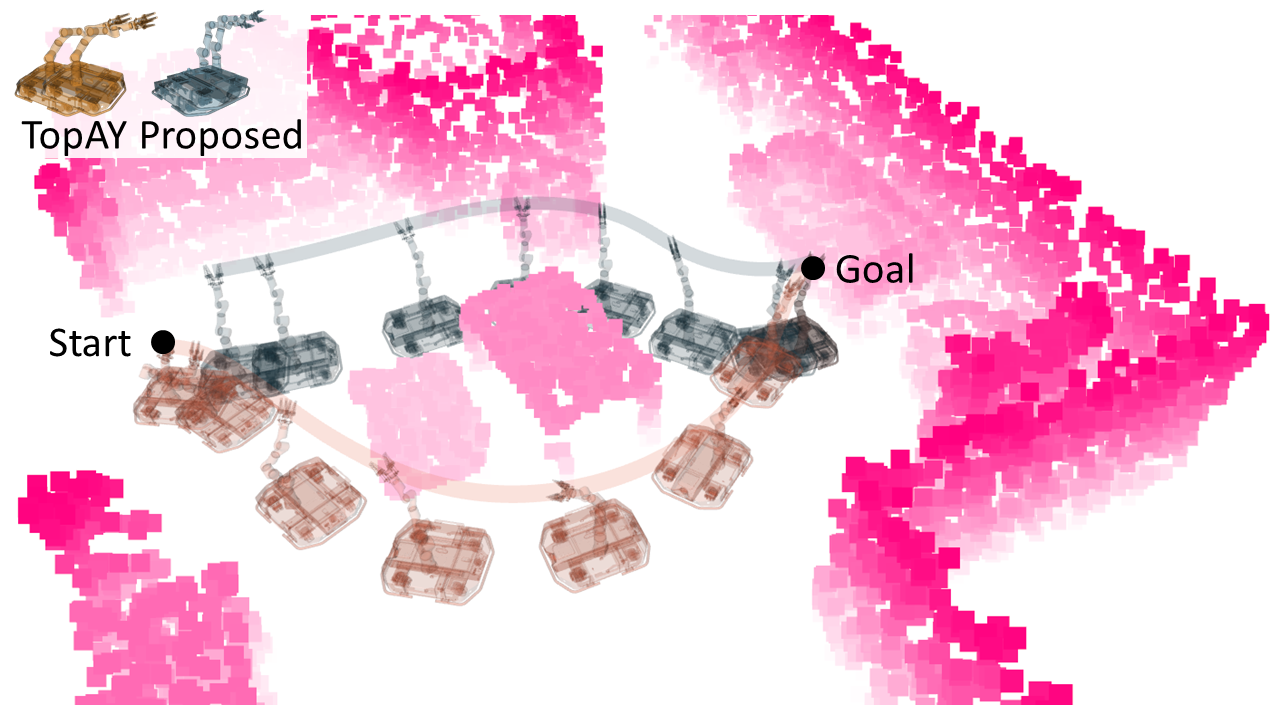

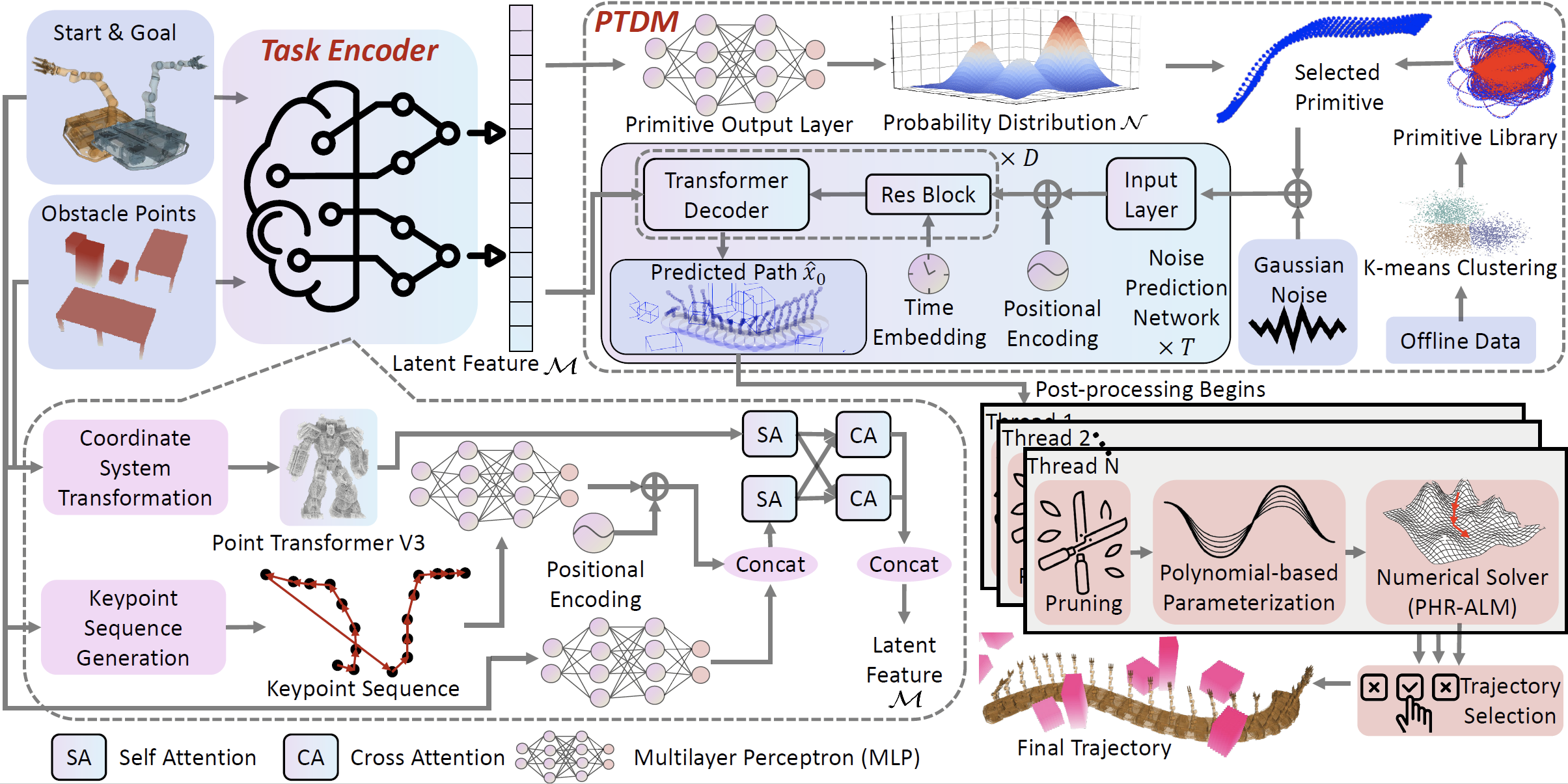

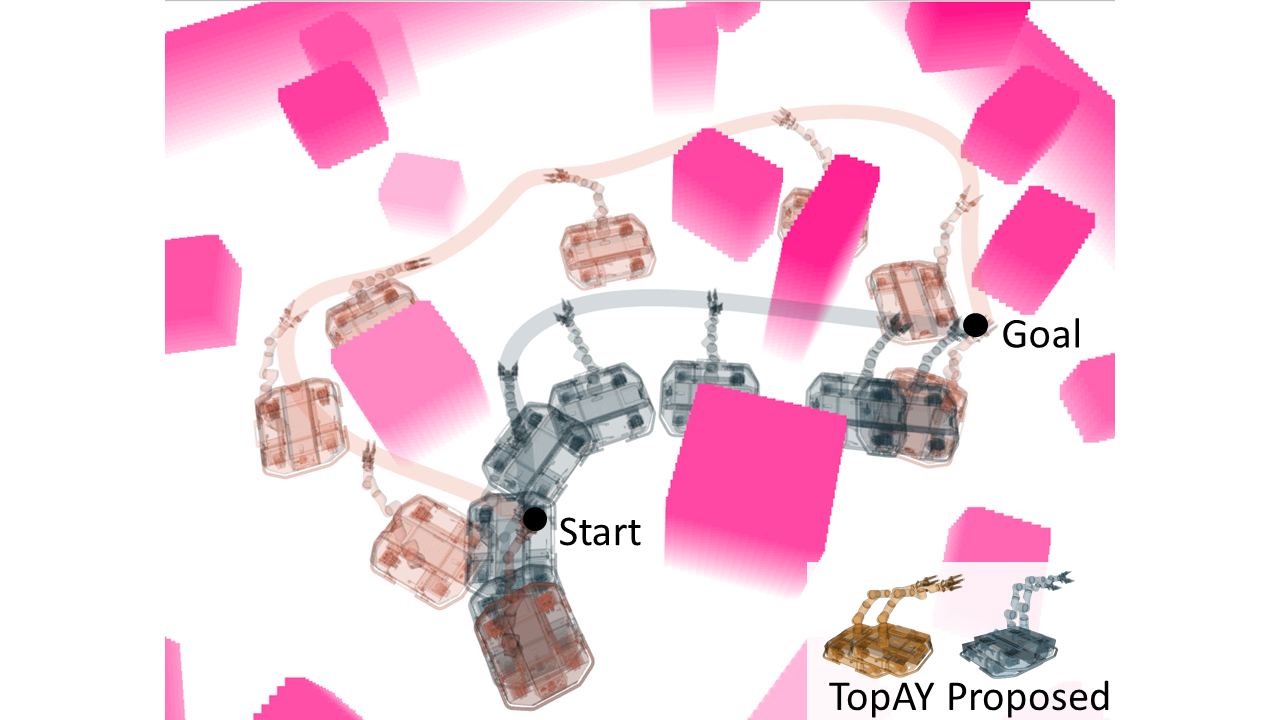

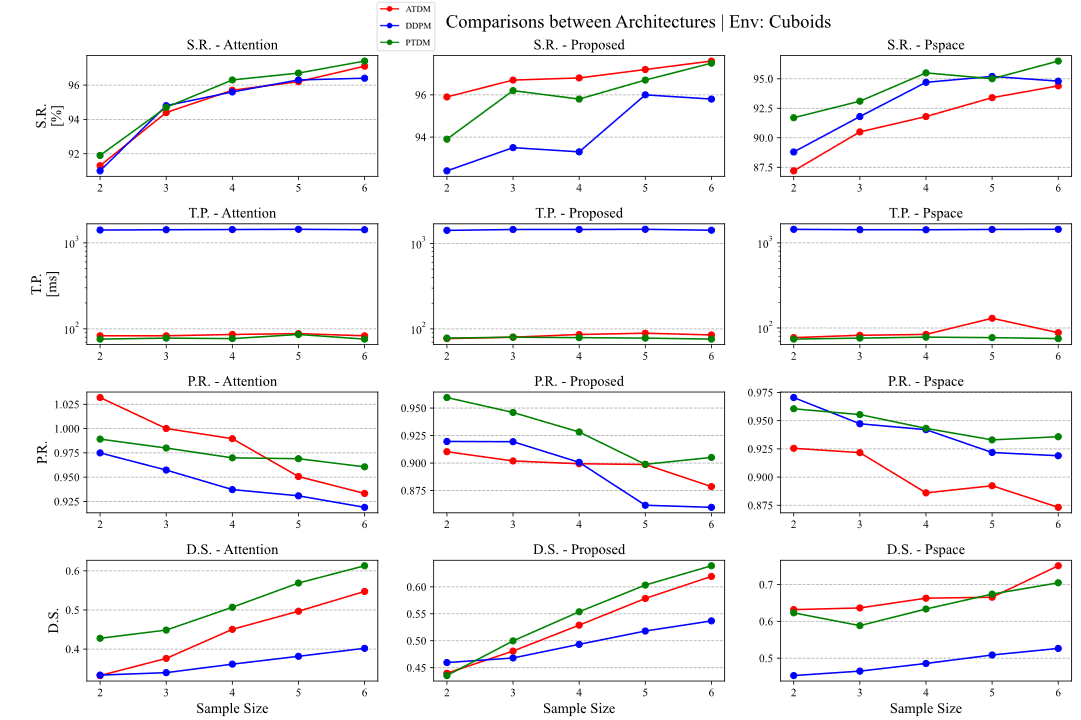

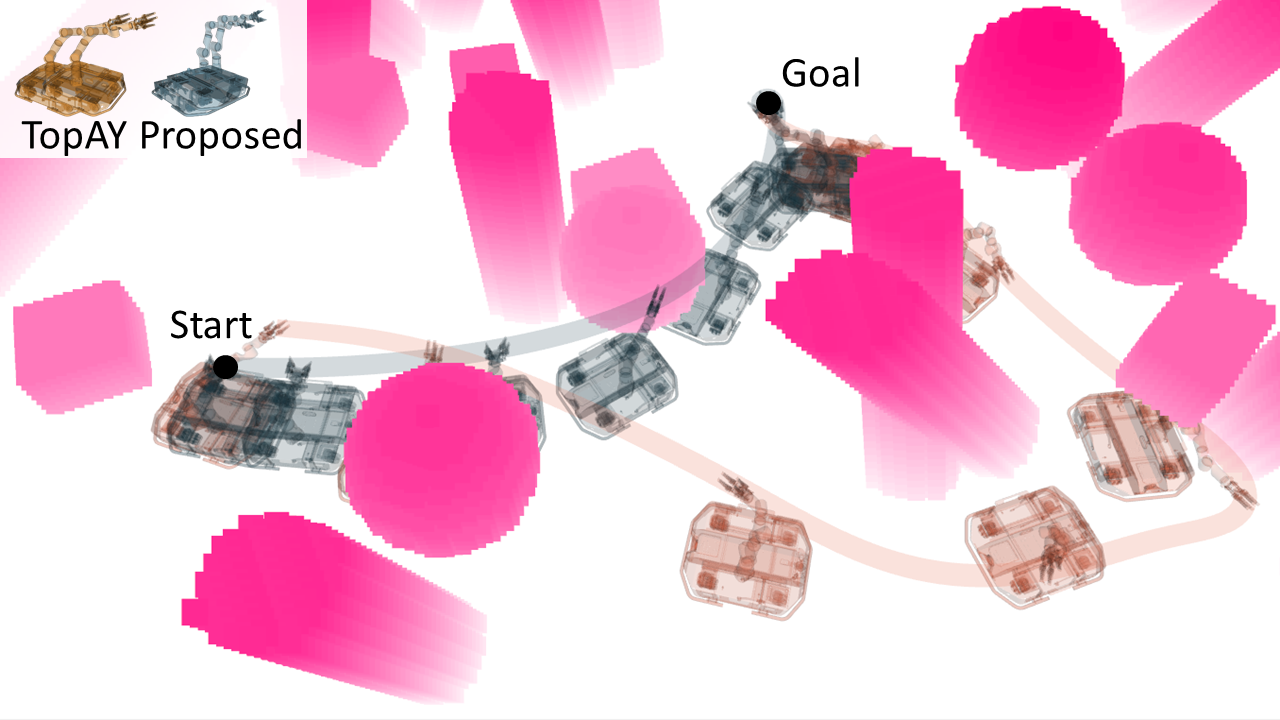

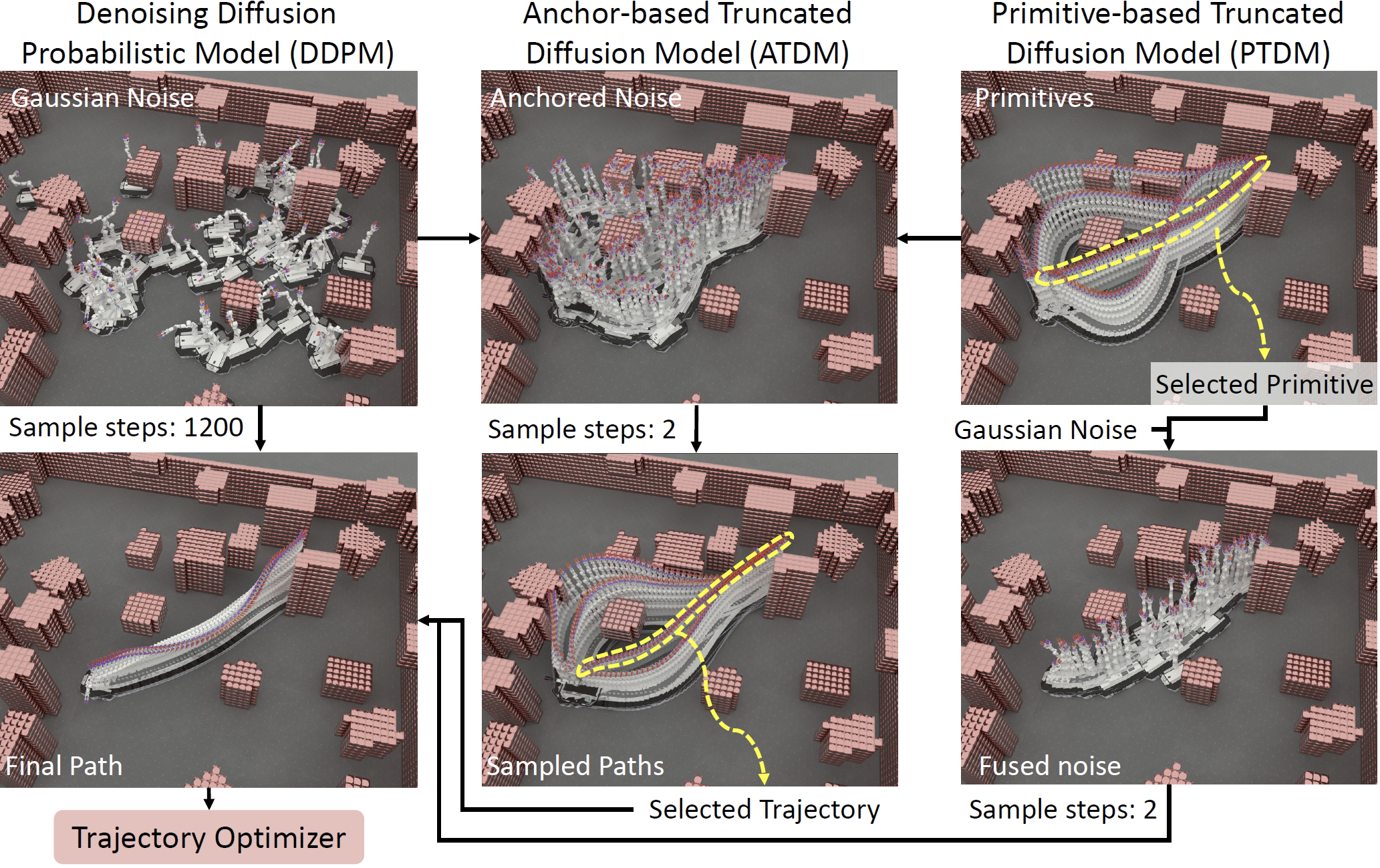

We present a learning-enhanced motion planner for differential drive mobile manipulators to improve efficiency, success rate, and optimality. For task representation encoder, we propose a keypoint sequence extraction module that maps boundary states to 3D space via differentiable forward kinematics. Point clouds and keypoints are encoded separately and fused with attention, enabling effective integration of environment and boundary states information. We also propose a primitive-based truncated diffusion model that samples from a biased distribution. Compared with vanilla diffusion model, this framework improves the efficiency and diversity of the solution. Denoised paths are refined by trajectory optimization to ensure dynamic feasibility and task-specific optimality. In cluttered 3D simulations, our method achieves higher success rate, improved trajectory diversity, and competitive runtime compared to vanilla diffusion and classical baselines.
